Pages

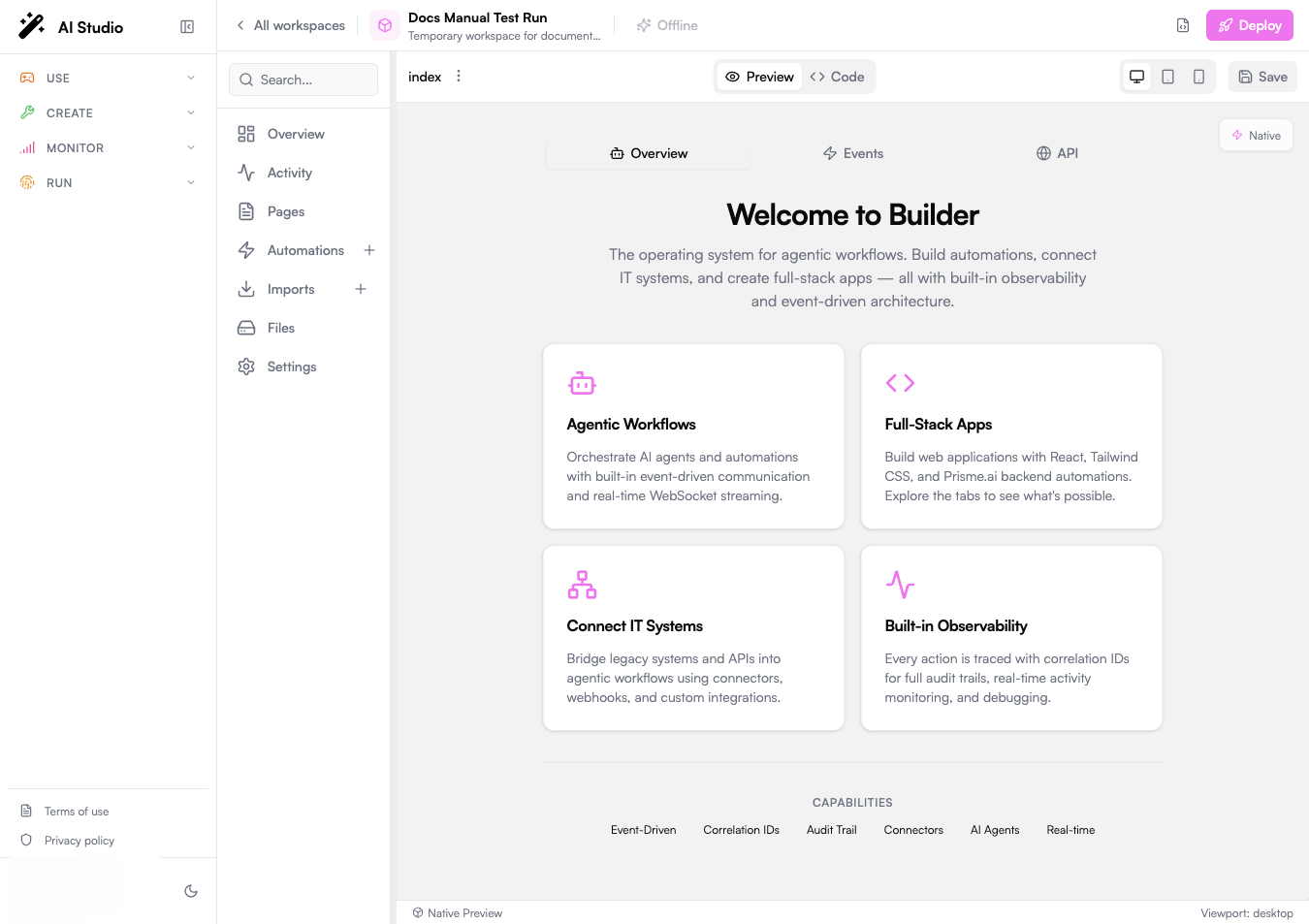

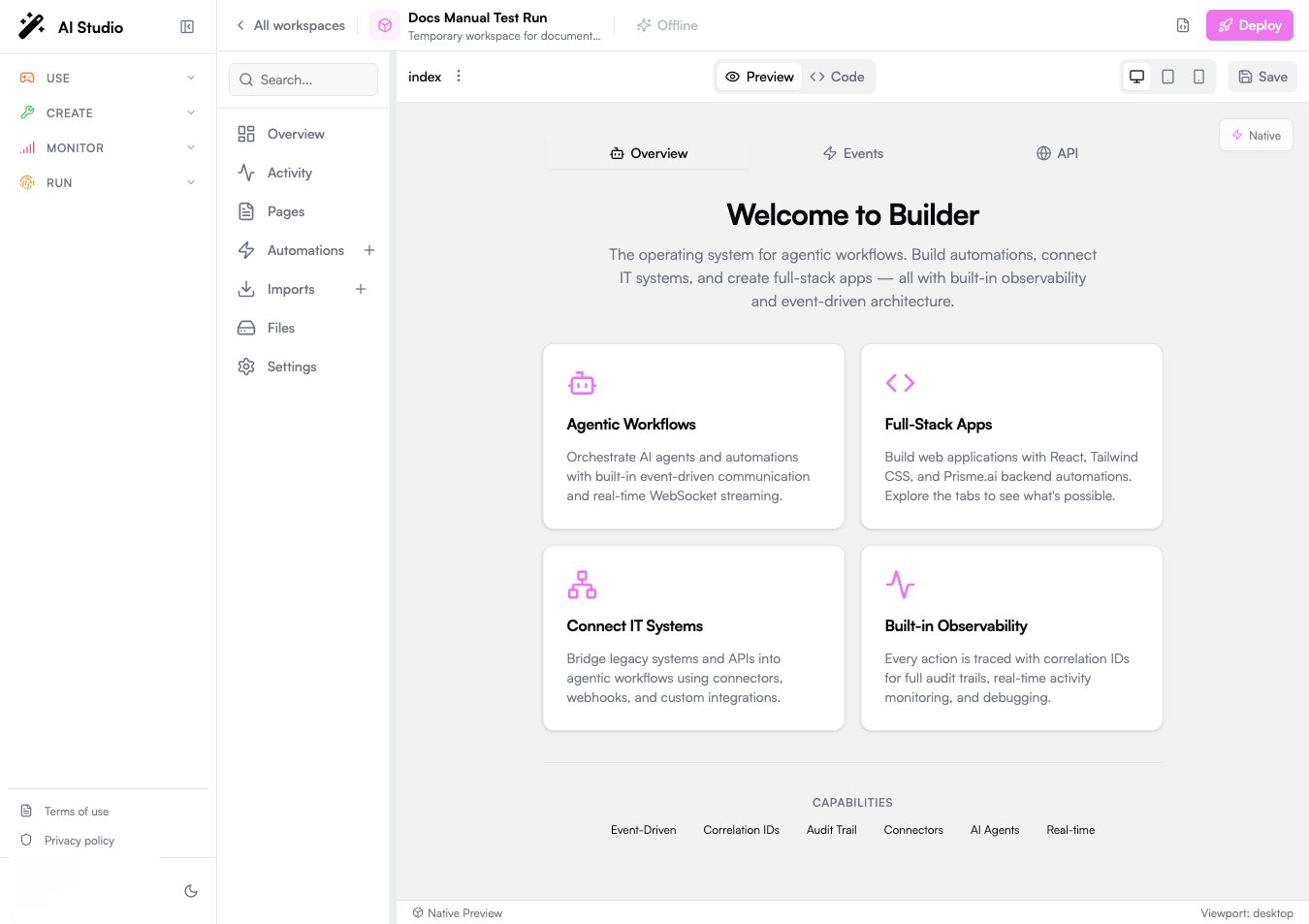

Builder page preview with the Pages section selected

Pages are the frontend part of a Builder workspace. In the current Builder, a page is managed as a React application source tree, not as a block canvas. You edit files, preview the compiled app, and connect the interface to workspace automations through HTTP endpoints, WebSocket events, and the injected Prisme.ai SDK. Use pages when users need a custom interface around an agent, workflow, internal tool, dashboard, or integration.

Coming from the legacy block editor?

If your workspace was originally built on the legacy YAML/block page editor, the new Builder treats those pages as runtime-only.

Existing legacy pages keep running after the upgrade — end users see no change at the URL they had bookmarked.
They are not editable in the new Builder UI. The block editor is gone; the page tab only opens React source trees.
To make a change, the page must be rewritten as a React/Vite app from a new page entry. There is no automatic conversion of legacy blocks to React components — the rendering model is different (server-rendered blocks vs client-rendered SPA).

A practical migration path:

Identify the page you want to change. Note its URL, the automations it calls, and the events it emits or listens to.
Create a new page in the Builder and initialize the React/Vite template.
Reproduce the UI with the components of your choice (Radix, the platform’s design system, or anything else).
Wire the new page to the same automations and events (see Connect to Automations).
Deploy the workspace and switch the public URL to the new page.

The legacy page documentation is still available in the Legacy documentation site (link in the footer) for as long as legacy pages remain in active workspaces.

What Changed

No Legacy Canvas

The old visual block editor is no longer a Builder navigation item. User interfaces are built from React components and files.

Code and Preview

Pages have a source editor and a native preview. Switch between them from the page toolbar.

React Template

A new page can initialize a React, Vite, Tailwind CSS, and Radix-based starter application.

Deployment Preview

Deployed bundles can appear in the Pages list as read-only previews.

Page Workspace

The Builder layout is organized around the workspace sidebar:

Overview shows usage, recent changes, errors, and quick actions.
Activity shows event traces and correlation IDs.
Pages contains editable source pages and read-only deployed bundles.
Automations contains backend workflows and webhooks.
Imports manages installed apps, custom code, and integration packages.
Files lists uploaded workspace assets.
Settings manages workspace configuration, sharing, secrets, and RBAC.

The editable page currently appears as index. It represents the source app that Builder compiles and previews.

Create a Page

Open the workspace

In AI Studio, open Create > Builder, then select the workspace that should contain the page.

Open Pages

Select Pages in the Builder sidebar. If the workspace has no page source yet, click the + action or initialize the template from Code mode.

Initialize the template

Builder creates a starter React app with files such as:

src/App.tsx
src/main.tsx
src/styles/globals.css
index.html
package.json
vite.config.ts

Edit the source

Switch to Code and edit the source files. The file tree supports folders, file selection, file creation, and file rename.

Preview the app

Switch back to Preview. Builder compiles the React source and renders it in the native preview area.

Save the page

Click Save when the page works as expected. Saving synchronizes the source files to the workspace.

Code Mode

Code mode is where the page source lives. Use it to:

Edit React and TypeScript files.
Add reusable components under src/components.
Update global styles under src/styles.
Add utility functions under src/lib or src/hooks.
Configure Vite, Tailwind CSS, TypeScript, and package metadata.

Builder tracks unsaved changes and enables Save when files have changed.

Preview Mode

Preview mode compiles the source and renders the page inside Builder. Use the device controls to test:

Desktop
Tablet
Mobile

The preview receives runtime context from the platform:

interface AppProps {
  sdk: SDK
  user: unknown
  workspace: {
    id: string
    slug: string
    name: string
  }
  backends?: Record<string, { slug: string }>
}

Use this context to call workspace webhooks, stream events, and adapt the interface to the current workspace or user.

Connect to Automations

Pages usually become useful when they call or listen to automations.

HTTP Webhooks
Events
Activity

Use an automation with an endpoint when the page needs request-response behavior.

async function runAutomation(sdk: SDK, workspaceSlug: string) {
  const response = await fetch(
    `${sdk.host}/workspaces/slug:${workspaceSlug}/webhooks/myAutomation`,
    {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
        ...(sdk.token ? { Authorization: `Bearer ${sdk.token}` } : {}),
        ...(sdk._csrfToken ? { "x-prismeai-csrf-token": sdk._csrfToken } : {}),
      },
      body: JSON.stringify({ name: "World" }),
    }
  )

  return response.json()
}

Use workspace events when the page needs real-time behavior or long-running automation feedback.

const events = await sdk.streamEvents(workspace.id, {
  "source.sessionId": true,
})

events.on("app.greeting.completed", (event) => {
  console.log(event.payload)
})

events.emit("app.greeting.requested", { name: "World" })

Build Locally: The `starter-spa` Reference App

If you prefer to author the page in your own IDE and deploy with a script, use the starter-spa starter at github.com/prismeai/starter-spa. It is the same React + Radix + Tailwind template the in-Builder + Page → New SPA action seeds, exported as a stand-alone repo you can clone, edit, and npm run release to your workspace.

git clone https://github.com/prismeai/starter-spa my-app
cd my-app
npm install
cp .env.example .env       # PRISMEAI_API_URL + PRISMEAI_ACCESS_TOKEN + PRISMEAI_WORKSPACE_ID
npm run dev                # local Vite dev server with a mocked host
npm run release            # build + deploy to your workspace

The starter is the smallest possible example of the host contract:

src/App.tsx — the React entry point. Its default export is what the platform renders. Receives { sdk, user, workspace, backends, agents } as props.
automations/v1/status.yml — a webhook endpoint, called from the REST tab of the demo.
automations/on-app-greeting-requested.yml — listens for app.greeting.requested, emits app.greeting.completed. Drives the WebSocket tab of the demo.
scripts/deploy.mjs — does the full sync (automations + source files + bundle + version snapshot) and patches config.value.bundles[<slug>] so AppRenderer picks up the new bundle on next load.

The same loader and the same AppProps contract apply to built-in apps shipped by the platform and to custom apps you build with this starter — what you author here is loaded exactly like a first-party app. Use the starter when you want:

An IDE + Git workflow instead of the in-Builder editor.
A CI-friendly deploy path (npm run release from a pipeline).
A reproducible local dev loop with a mocked SDK (src/lib/mockHost.ts).

The starter’s README.md covers the full deploy script, externals policy (never bundle React or @prisme.ai/sdk), and the conflict-detection / safe-retry semantics in detail.

End-to-end Example: Page → Automation → Live Updates

This walk-through wires a React page to a backend automation that does work asynchronously and streams progress back to the UI. It exercises the three integration patterns at once: HTTP request, event subscription, and Activity tracing. The use case: a user clicks Generate report in the page. The backend kicks off a long-running task that emits intermediate events (report.generating, report.progress, report.ready). The page reflects the progress in real time, then shows a download link when the report is ready.

1. The automation

Create an automation called generate-report:

slug: generate-report
name: Generate report
when:
  endpoint: true
arguments:
  parameters:
    type: object
    properties:
      reportType:
        type: string
        enum: [weekly, monthly]
    required: [reportType]
do:
  - emit:
      event: report.generating
      payload:
        reportType: "{{body.reportType}}"
        correlationId: "{{run.correlationId}}"

  - repeat:
      until: 5
      do:
        - wait:
            timeout: 2          # Simulated work
        - emit:
            event: report.progress
            payload:
              correlationId: "{{run.correlationId}}"
              percent: "{% ({{$index}} + 1) * 20 %}"

  # ... actual report generation logic (fetch, run, etc.) ...

  - set:
      name: reportUrl
      value: "https://files.example.com/{{run.correlationId}}.pdf"

  - emit:
      event: report.ready
      payload:
        correlationId: "{{run.correlationId}}"
        url: "{{reportUrl}}"

output:
  correlationId: "{{run.correlationId}}"

Key points:

The automation emits a correlation ID in every event. The page uses it to filter the events it cares about (otherwise it would receive every report.* event in the workspace).
The HTTP response returns the correlation ID immediately. The actual work happens after the response is sent.
report.progress is fired N times during the work — these drive the UI progress bar.

2. The page

In the page source, call the webhook and subscribe to its events.

import { useState, useEffect } from "react"

interface AppProps {
  sdk: SDK
  user: unknown
  workspace: { id: string; slug: string; name: string }
}

export default function App({ sdk, workspace }: AppProps) {
  const [status, setStatus] = useState<"idle" | "running" | "ready" | "error">("idle")
  const [progress, setProgress] = useState(0)
  const [reportUrl, setReportUrl] = useState<string | null>(null)

  async function generate() {
    setStatus("running")
    setProgress(0)
    setReportUrl(null)

    // 1) Start the automation. The response carries the correlation ID
    //    we will filter events on.
    const res = await fetch(
      `${sdk.host}/workspaces/slug:${workspace.slug}/webhooks/generate-report`,
      {
        method: "POST",
        headers: {
          "Content-Type": "application/json",
          ...(sdk.token ? { Authorization: `Bearer ${sdk.token}` } : {}),
          ...(sdk._csrfToken ? { "x-prismeai-csrf-token": sdk._csrfToken } : {}),
        },
        body: JSON.stringify({ reportType: "weekly" }),
      }
    )
    const { correlationId } = await res.json()

    // 2) Subscribe to events that carry this correlation ID.
    const events = await sdk.streamEvents(workspace.id, {
      "payload.correlationId": correlationId,
    })

    events.on("report.progress", (e) => setProgress(e.payload.percent))
    events.on("report.ready", (e) => {
      setReportUrl(e.payload.url)
      setStatus("ready")
      events.destroy()              // 3) Clean up the subscription.
    })
    events.on("report.error", () => {
      setStatus("error")
      events.destroy()
    })
  }

  return (
    <div className="p-6 space-y-4">
      <button
        onClick={generate}
        disabled={status === "running"}
        className="px-4 py-2 bg-blue-600 text-white rounded"
      >
        Generate report
      </button>

      {status === "running" && (
        <div className="w-full bg-gray-200 h-2 rounded">
          <div
            className="h-2 bg-blue-600 rounded transition-all"
            style={{ width: `${progress}%` }}
          />
        </div>
      )}

      {status === "ready" && reportUrl && (
        <a href={reportUrl} className="text-blue-600 underline">
          Download report
        </a>
      )}

      {status === "error" && (
        <p className="text-red-600">Something went wrong. Check Activity for details.</p>
      )}
    </div>
  )
}

What’s happening:

HTTP call — the page POSTs to the automation’s webhook and receives the correlation ID synchronously.
Event subscription — sdk.streamEvents opens a workspace-scoped event stream. The filter "payload.correlationId": correlationId narrows the stream to events from this specific run.
Cleanup — the stream is closed as soon as the final event arrives or an error happens. Forgetting this leaks websockets.

3. Tracing it in Activity

Open the Activity tab while the page runs. Filter by source.correlationId = <id> (you can copy it from the network panel of the page, or have the page log it). You will see, in order:

Event	Source	Notes
`runtime.webhooks.calledStarted`	the user / page	The webhook hit.
`runtime.automations.executed`	runtime	The automation run started.
`report.generating`	`generate-report`	Emitted at the top of `do`.
`report.progress` (×5)	`generate-report`	One per loop iteration.
`report.ready`	`generate-report`	Final event.
`runtime.automations.completed`	runtime	Run finished.

The correlation ID threads through the whole flow — this is the same trace the page receives over the websocket. See Testing & Debugging → Activity for the full filter grammar.

Patterns this example demonstrates

Pattern	Where it lives in the code
Fire-and-forget request with a correlation ID handle	`generate()` reads `correlationId` from the webhook response.
Server-pushed progress	`sdk.streamEvents` + `events.on("report.progress")`.
Driving UI state from events (show / hide / progress)	`setProgress`, `setStatus`, `setReportUrl`.
Filtered subscription (one run, not the whole workspace)	`"payload.correlationId": correlationId` in the stream filter.
Predictable Activity trace	The automation always emits the correlation ID; the Activity filter matches it.

For longer-running flows, the same scaffold works: emit *.partial events as data becomes available, end with a *.ready or *.error, and clean up the subscription when you receive a terminal event.

Page Styling

The Builder page template ships with Tailwind CSS, configured the way most React/Vite projects use it. Anything you would normally do with Tailwind works as-is — utility classes, custom theme tokens in tailwind.config.ts, component classes via @apply, etc. The platform adds a few Prisme-specific bits on top of the standard Tailwind setup.

Theme handover from the embed

When the page is rendered through embed.js (see Deploy modal → Share tab), the host script forwards optional theming attributes to the React app:

`data-*` on `<script>`	Forwarded as	Use in CSS
`data-theme="dark"`	`props.theme` and a `data-theme="dark"` attribute on the mount root	`[data-theme="dark"] .…` Tailwind variants or plain CSS selectors
`data-primary-color="#0066ff"`	CSS variable `--prismeai-primary` on the mount root	`bg-[var(--prismeai-primary)]`
`data-background-color="…"`	CSS variable `--prismeai-bg` on the mount root	`bg-[var(--prismeai-bg)]`

Wire the variables into your Tailwind theme once and every component picks them up:

// tailwind.config.ts
export default {
  theme: {
    extend: {
      colors: {
        brand: "var(--prismeai-primary)",
        canvas: "var(--prismeai-bg)",
      },
    },
  },
} satisfies Config

<button className="bg-brand text-white">Send</button>

Globals and resets

The starter ships a src/styles/globals.css with the Tailwind directives and a minimal reset:

@tailwind base;
@tailwind components;
@tailwind utilities;

Override or extend it like any Tailwind project. Do not import a second Tailwind CDN — embed.js already injects one for hosts that want a zero-config shell, and double-loading produces specificity surprises.

When in doubt

For everything that is not Prisme-specific (utility classes, plugins, JIT options, dark mode strategy, etc.), the Tailwind documentation is the source of truth. The same applies to React, Vite, and Radix — Builder pages use them in the standard way.

Deployed Bundles

When a workspace has deployed page bundles, Builder lists them under Pages as read-only entries. Read-only pages use a lock icon and cannot be edited from the source editor. Use them to inspect the deployed app while keeping the editable source separate. To change a deployed page:

Open the editable index source.
Make and save changes.
Deploy the workspace again.
Reopen the deployed bundle preview.

Files and Assets

The Files section is separate from the page source tree. Use it for uploaded assets that belong to the workspace, such as PDFs, images, spreadsheets, or other binary files. For app source files, use Pages > Code. For workspace uploads, use Files.

Troubleshooting

The preview stays on Initializing

Open Code and verify that the workspace has a valid React entry point such as src/App.tsx and src/main.tsx. If no files exist, initialize the template.

The page shows a build error

Read the error in the preview, fix the corresponding source file, and return to Preview. Typical causes are invalid imports, missing exports, or TypeScript syntax errors.

The page cannot call an automation

Check that the automation endpoint exists, that the URL uses the current workspace slug, and that authentication headers include the platform token and CSRF token when required.

The UI action ran but no result appeared

Open Activity, filter by the correlation ID, and inspect the automation trace. The request may have reached the backend but failed inside an instruction.

Next Steps

Automations

Build the backend workflows that pages call.

Testing & Debugging

Trace page actions through Activity and correlation IDs.

Integrations

Connect pages and automations to external systems.

Deployment

Publish the workspace once the page is ready.

Overview

Chat

Agent Creator

Knowledges

Builder

Governe

Insights

Coming from the legacy block editor?

What Changed

No Legacy Canvas

Code and Preview

React Template

Deployment Preview

Page Workspace

Create a Page

Code Mode

Preview Mode

Connect to Automations

Build Locally: The `starter-spa` Reference App

End-to-end Example: Page → Automation → Live Updates

1. The automation

2. The page

3. Tracing it in Activity

Patterns this example demonstrates

Page Styling

Theme handover from the embed

Globals and resets

When in doubt

Deployed Bundles

Files and Assets

Troubleshooting

Next Steps

Automations

Testing & Debugging

Integrations

Deployment

Overview

Chat

Agent Creator

Knowledges

Builder

Governe

Insights

Documentation Index

​Coming from the legacy block editor?

​What Changed

No Legacy Canvas

Code and Preview

React Template

Deployment Preview

​Page Workspace

​Create a Page

​Code Mode

​Preview Mode

​Connect to Automations

​Build Locally: The starter-spa Reference App

​End-to-end Example: Page → Automation → Live Updates

​1. The automation

​2. The page

​3. Tracing it in Activity

​Patterns this example demonstrates

​Page Styling

​Theme handover from the embed

​Globals and resets

​When in doubt

​Deployed Bundles

​Files and Assets

​Troubleshooting

​Next Steps

Automations

Testing & Debugging

Integrations

Deployment

Coming from the legacy block editor?

What Changed

Page Workspace

Create a Page

Code Mode

Preview Mode

Connect to Automations

Build Locally: The `starter-spa` Reference App

End-to-end Example: Page → Automation → Live Updates

1. The automation

2. The page

3. Tracing it in Activity

Patterns this example demonstrates

Page Styling

Theme handover from the embed

Globals and resets

When in doubt

Deployed Bundles

Files and Assets

Troubleshooting

Next Steps
